GRADE LASERS BY MOBA
Single and Dual Grade Lasers with Unrivaled Precision and Robustness
MOBA grade laser SYSTEMS
Our grade laser solutions include:
Vision 1N grade Sensor
Horizontal single grade laser with monitoring of the laser plane.
Vision 2N / 2N Align
Horizontal/vertical dual grade laser with monitoring of the laser plane.
Vision 2N AUTOSLOPE
Horizontal dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope).
MOBA SOLUTIONS HELP SOLVE CRITICAL CHALLENGES
FOR EARTHMOVING:
INCREASE PRODUCTIVITY
Without grade control technology, operators must visually estimate excavation depth and stop frequently for manual verification. MOBA laser grading systems provide precise real-time elevation guidance, reducing control checks, minimizing rework, and increasing jobsite productivity.
LESS MACHINE WEAR
Repeated corrections and unnecessary rework increase machine operating hours, accelerating wear and shortening equipment lifespan. MOBA helps operators get grading right the first time, reducing strain on machinery and extending equipment longevity.
LOWER OPERATING COSTS
Uncontrolled grading often requires additional passes, longer working hours, and excess fuel consumption. MOBA laser grading systems improve grading efficiency with precise automated control, helping reduce operating costs across every project.
VISION 1N Grade Laser
HORIZONTAL SINGLE GRADE LASER WITH MONITORING
Horizontal single grade laser with monitoring of the laser plane. In case of strong vibrations and major temperature fluctuations, the rotor shuts off automatically to prevent false measurements. The integrated masking function of the laser beam protects road users and pedestrians and prevents false measurements due to reflection (e.g. glass surfaces).
- Dual grade +/- 10 % with monitoring
- Storage of last slope values
- Range up to 750 m (radius)
- Illuminated LCD display
- Manual slope
KEY FEATURES:
EASY
TO OPERATE
Extremely easy to operate with large back-lit LCD screen and simple, intuitive control layout.
RELIABLE
Performance
Alkaline and rechargeable batteries to ensure you never run out of power.
Robust
Construction
Fully machined all-metal internals for unrivalled robustness and reliability.

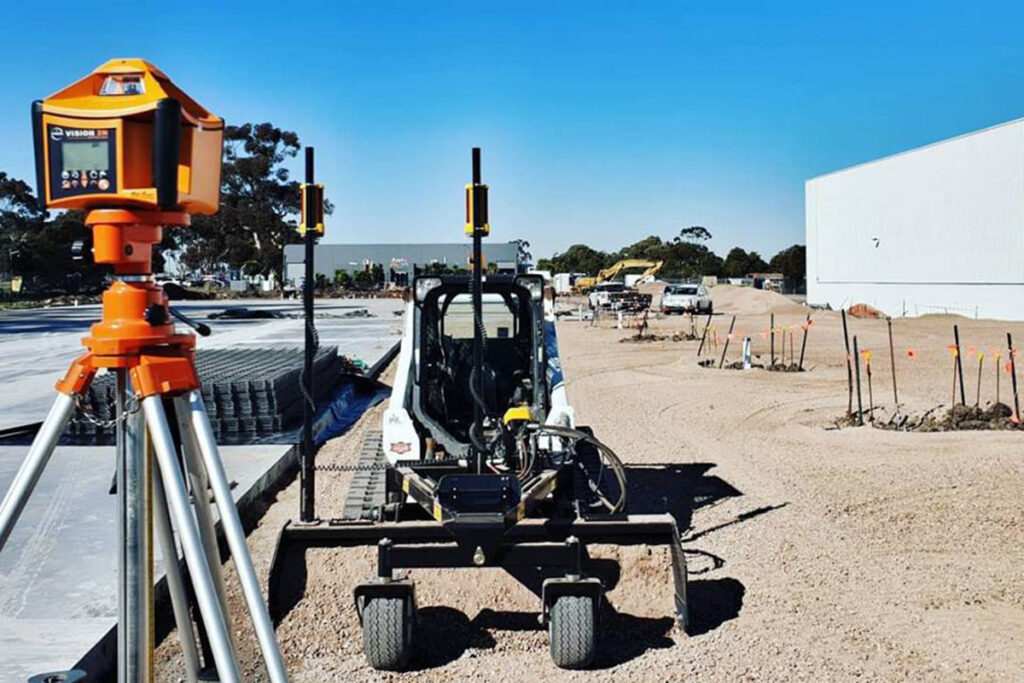

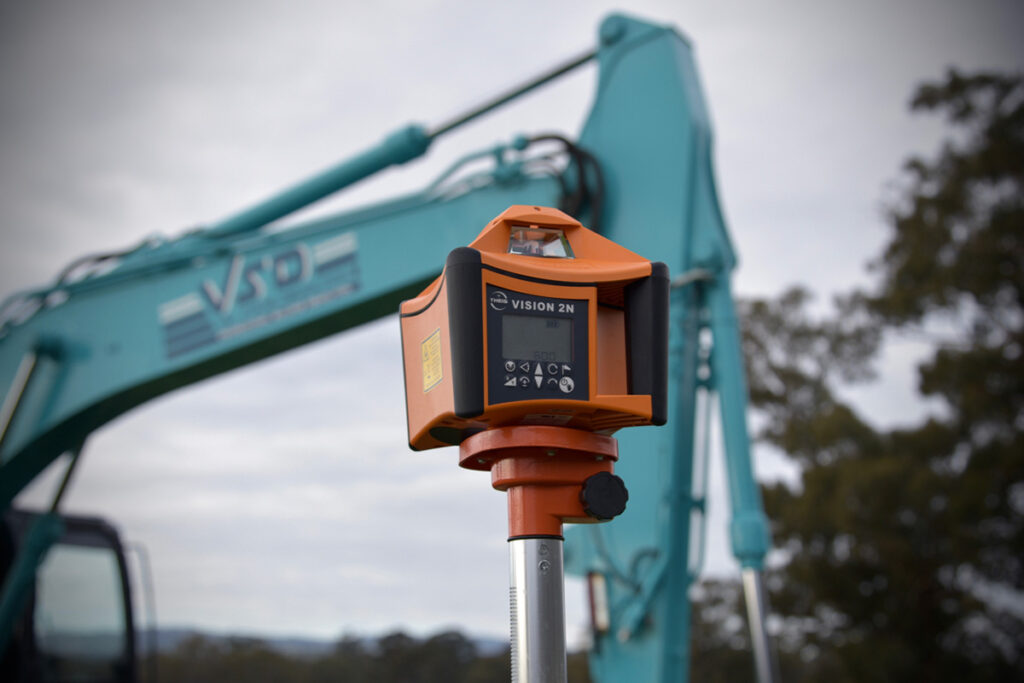

Vision 2N / 2N Align
Horizontal/vertical dual grade laser
Horizontal/vertical dual grade laser with monitoring of the laser plane. In case of strong vibrations and major temperature fluctuations, the rotor shuts off automatically to prevent false measurements. The integrated masking function of the laser beam protects road users and pedestrians and prevents false measurements due to reflection (e.g. glass surfaces).
- Dual grade +/- 10 % with monitoring
- Storage of last slope values
- Range up to 750 m (radius)
- Illuminated LCD display
- Manual slope
- Receiver TE 90 ALIGN for automated alignment (2N ALIGN model)
KEY FEATURES:
EASY
TO OPERATE
Extremely easy to operate with large back-lit LCD screen and simple, intuitive control layout.
RELIABLE
Performance
Alkaline and rechargeable batteries to ensure you never run out of power.
Robust
Construction
Fully machined all-metal internals for unrivalled robustness and reliability.
Ready to see how MOBA GRADE LASERS CAN WORK FOR YOU?

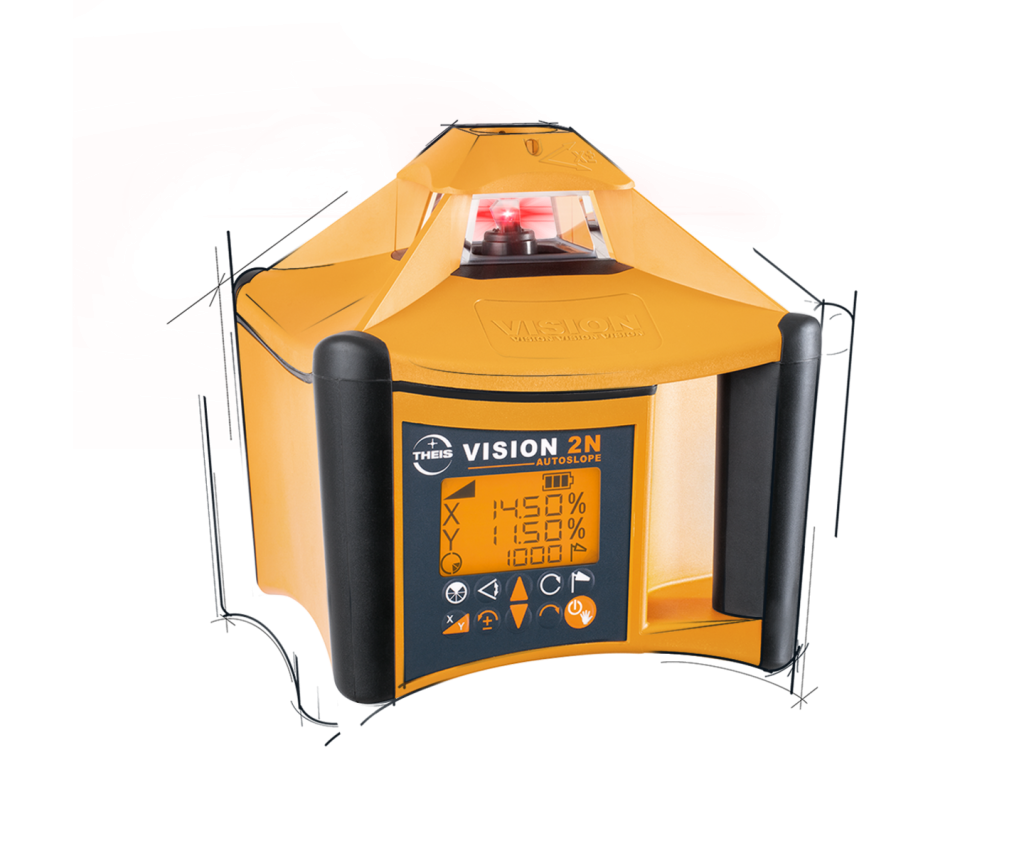

ViSion 2N AUTOSLOPE / AUTOSLOPE ALIGN
HORIZONTAL DUAL GRADE LASER WITH AUTOSLOPE
Horizontal dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope). The plane is monitored electronically and immediately adjusted following mechanic or thermal changes.
- Dual grade slope +/- 15 % with adjustment (Autoslope)
- Storage of last slope values
- Range up to 750 m (radius)
- Illuminated LCD display
- Masking function of the laser beam
- Manual slope
- Receiver TE 90 ALIGN for automated alignment (2N ALIGN model)
KEY FEATURES:
EASY
TO OPERATE
Extremely easy to operate with large back-lit LCD screen and simple, intuitive control layout.
RELIABLE
Performance
Alkaline and rechargeable batteries to ensure you never run out of power.
Robust
Construction
Fully machined all-metal internals for unrivalled robustness and reliability.
