MOBA
Paving Automation

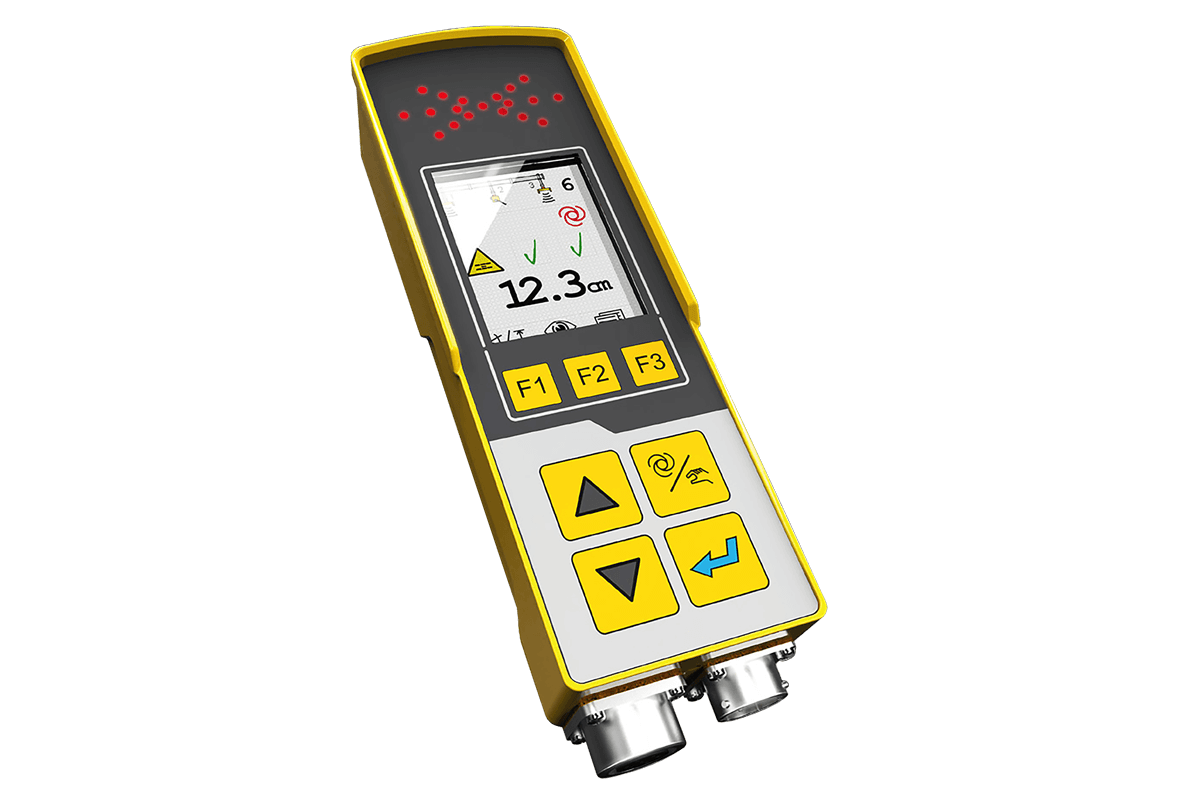

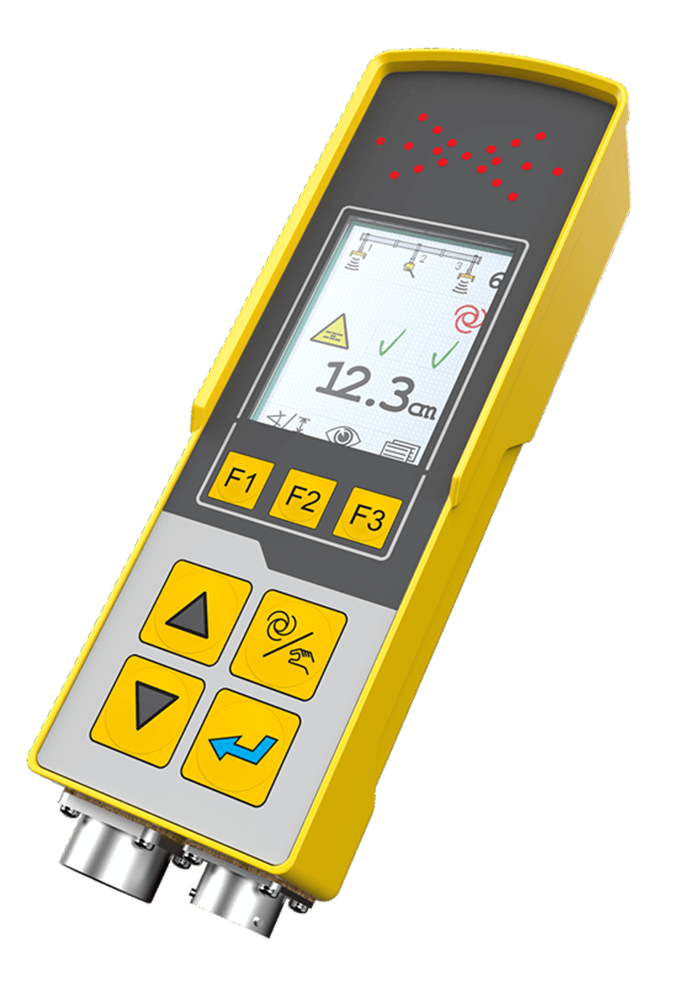

Moba-Matic II

Automatic grade and slope control for asphalt pavers

ONE CONTROL SYSTEM. MULTIPLE REFERENCE OPTIONS.

MOBA-Matic II automatically controls screed height and cross slope using the reference method that fits the paving application—helping crews maintain the intended profile and achieve more consistent paving results.


The system works with MOBA’s range of grade and slope sensors, allowing crews to configure the system around the job—from stringline and surface references to long-range averaging with the Big Sonic-Ski.

Key Features:

AUTOMATIC GRADE & SLOPE CONTROL

MOBA-Matic II continuously compares the measured grade or slope with the selected setpoint and sends corrections to the screed as conditions change.

STRAIGHTFORWARD OPERATOR CONTROL

The four-button controller keeps common adjustments easy to reach, with a backlit display and controls for low-light paving conditions.

FLEXIBLE REFERENCE OPTIONS

Use the reference method that fits the job, including stringline, surface, non-contact and slope sensing, as well as longer-range averaging with the Big Sonic-Ski.

FLEXIBLE INSTALLATION ACROSS PAVERS

MOBA-Matic II is designed for retrofit installation across a wide range of asphalt pavers, with sensors and system configuration adapted to the machine and paving application.

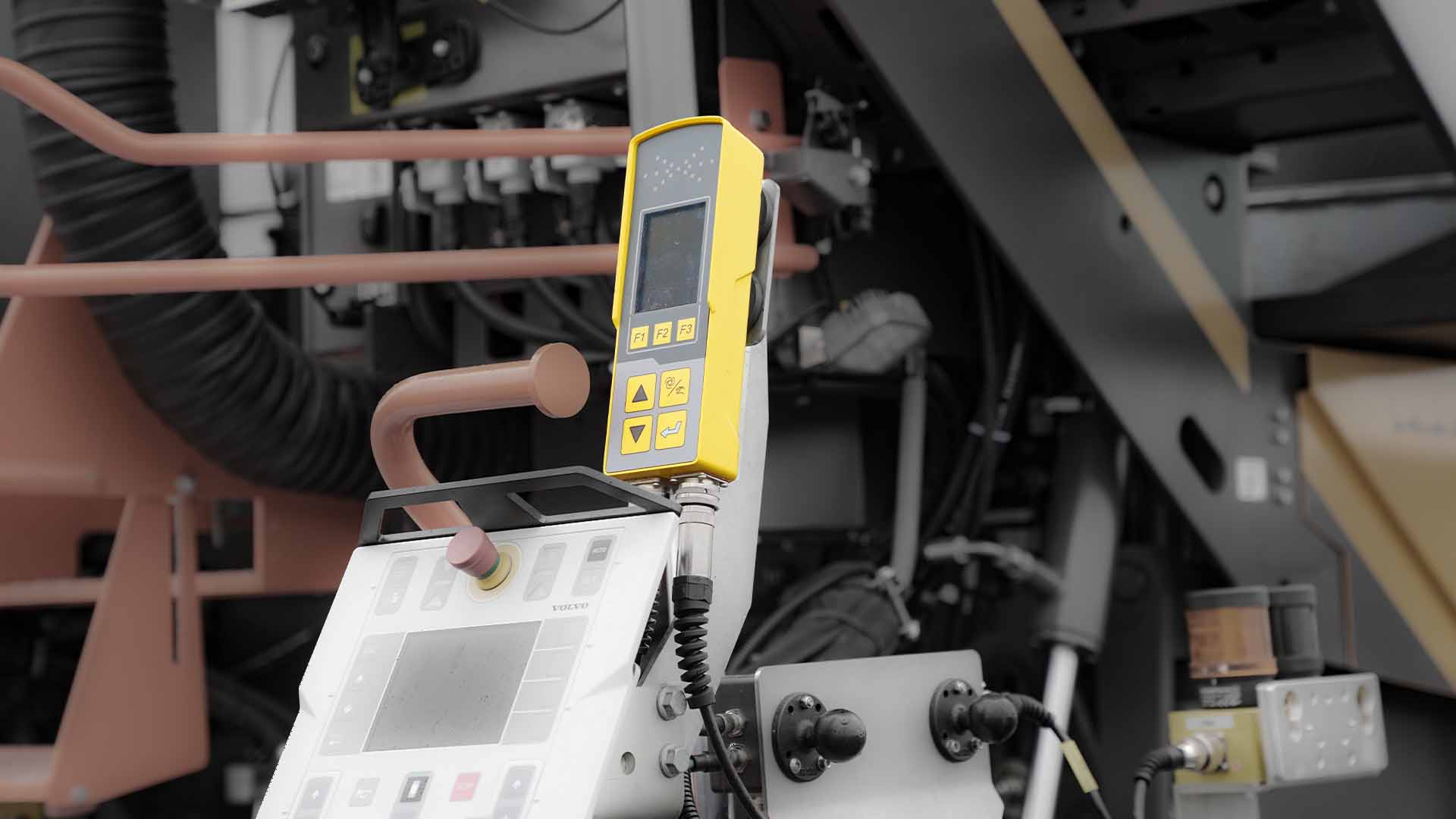

Mobamatic2_01

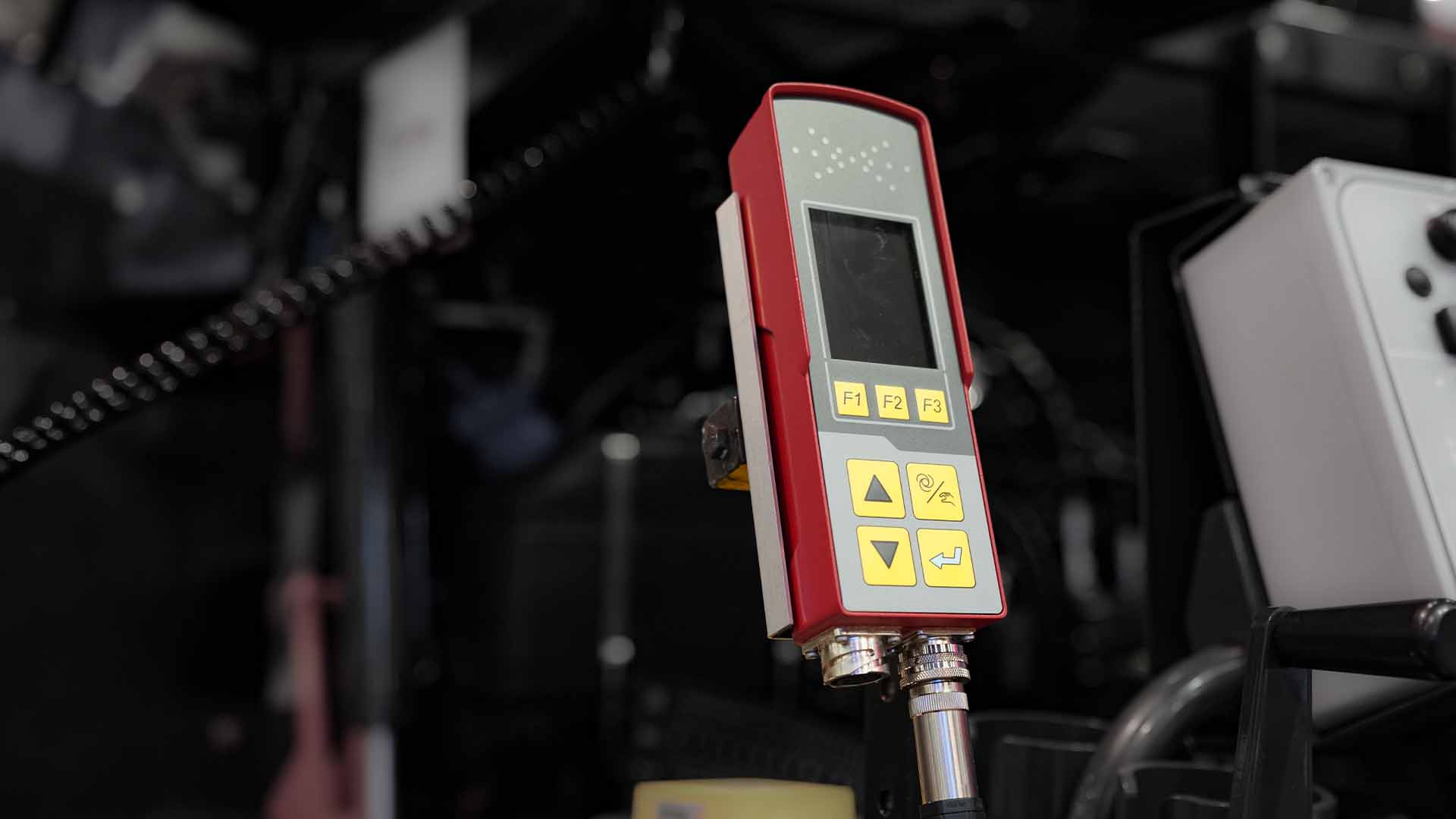

Mobamatic2_02

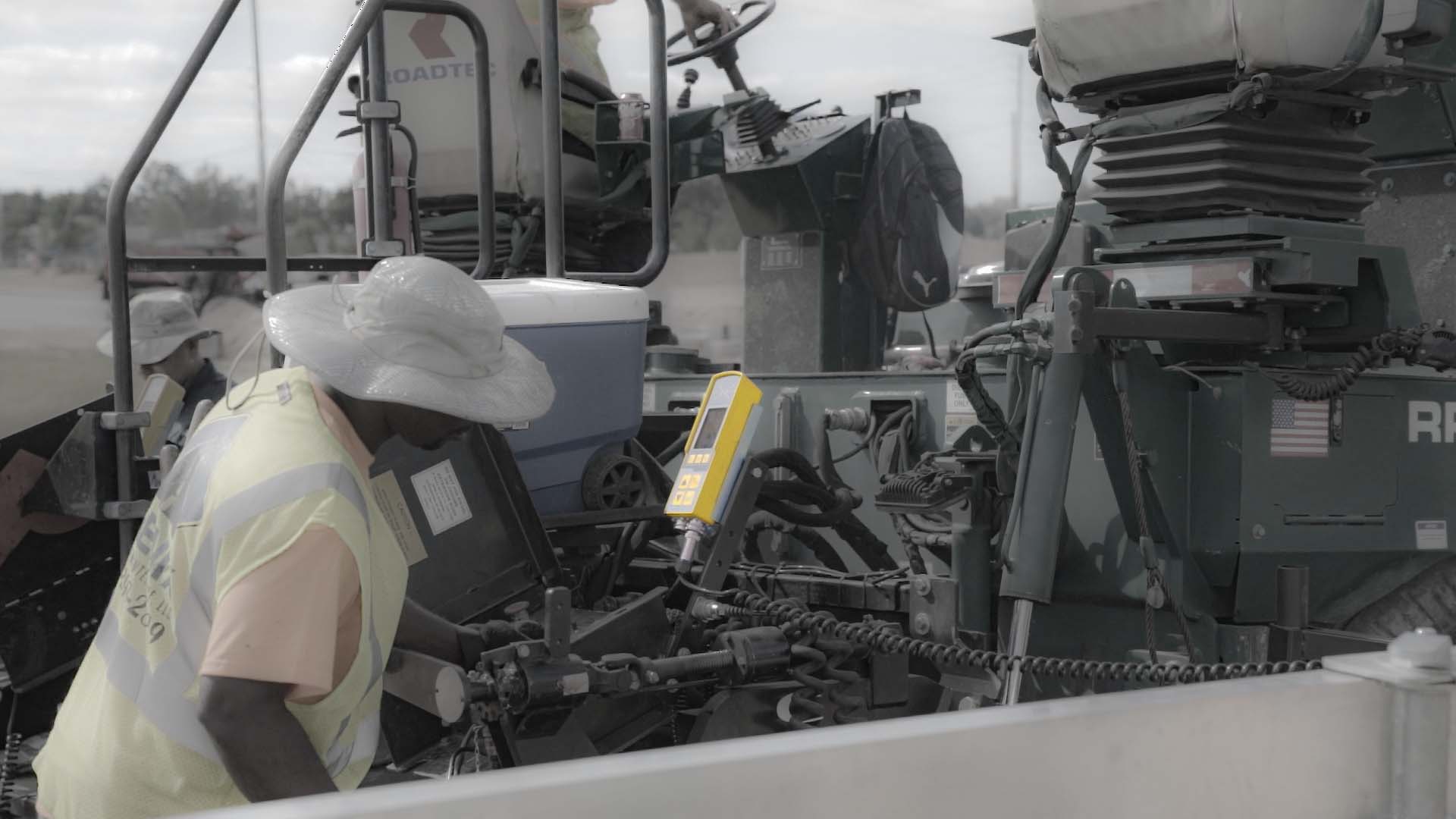

Mobamatic2_03

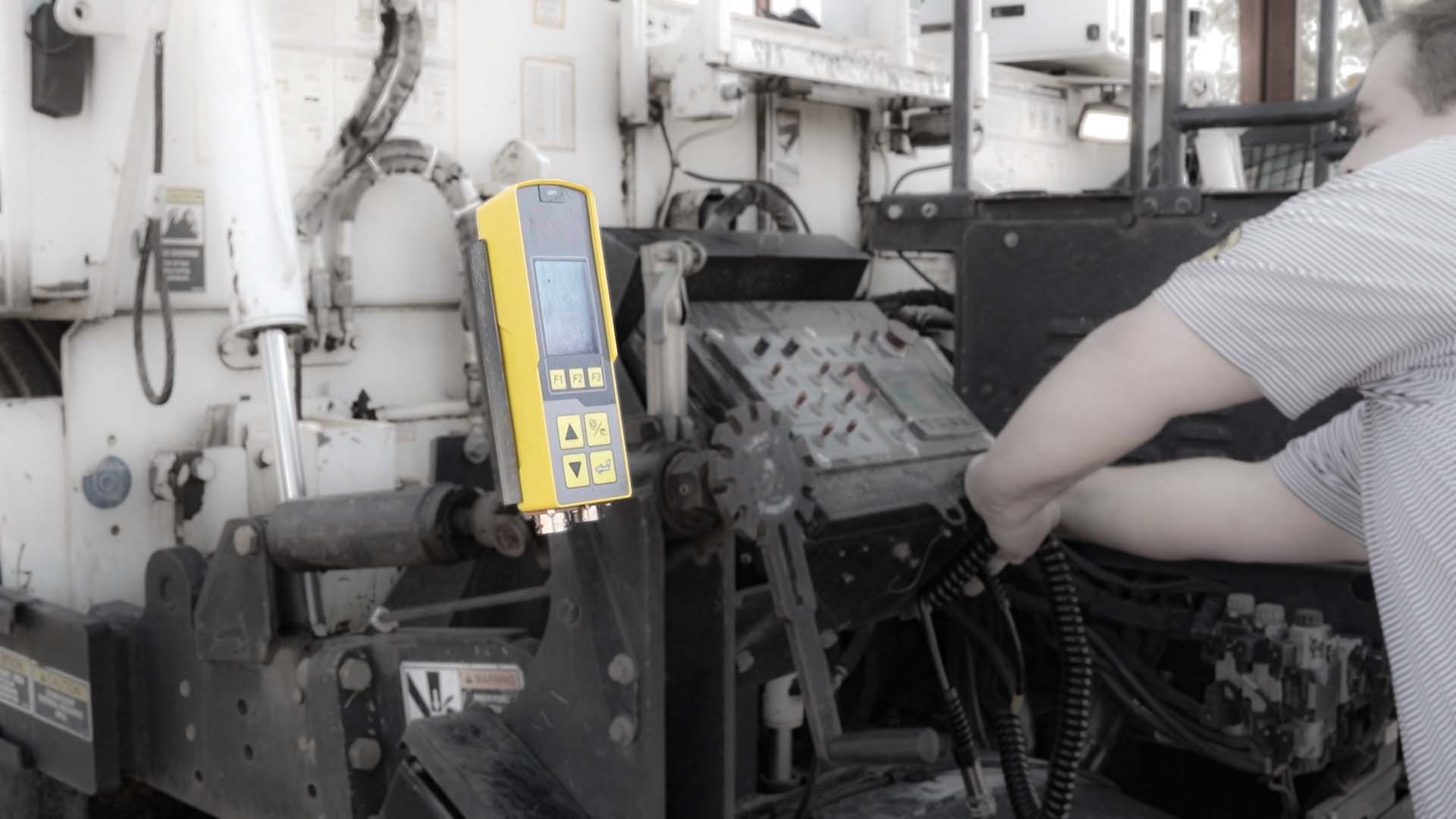

Mobamatic2_04

NOT SURE WHICH SETUP FITS YOUR PAVER?

TALK TO A PAVING EXPERT

WHAT BETTER SCREED CONTROL DELIVERS

MAINTAIN GRADE & CROSS SLOPE

Automatic control helps the screed follow the intended profile throughout the paving pass.

IMPROVE SMOOTHNESS

A stable reference and consistent screed response help reduce unnecessary corrections that can affect the finished mat and ride quality—and support lower IRI scores.

REDUCE MANUAL CORRECTIONS

Automation handles repetitive measurement and control so the crew can focus on material flow, transitions, joints and the rest of the paving process.

BIG SONIC-SKI

WHEN SMOOTHNESS NEEDS A LONGER REFERENCE

The Big Sonic-Ski uses multiple non-contact sensors to average the reference surface over a longer distance, reducing the influence of individual bumps and dips before the reference reaches MOBA-Matic II.


This gives the control system a more stable reference to follow, helping the screed respond to the overall surface profile instead of reacting to every small irregularity.

MM-VIEW

WHEN THE PAVER IS RUNNING, SUPPORT MATTERS

MM-View gives MOBA paving specialists remote visibility into the control system, helping diagnose problems and reduce unnecessary troubleshooting time and service visits.

VIEW BROCHURE

Discover more MOBA Solutions

PAVE-IR

See temperature differences across the mat and document conditions that can affect paving quality.

LEARN MORE

Custom Cables

U.S. manufactured cables, built to your precise requirements.

LEARN MORE

Download Center

Find MOBA-Matic II brochures, product information and additional paving resources.

LEARN MORE

FIND THE RIGHT GRADE CONTROL SETUP FOR YOUR PAVER

Tell us about your machine, paving application and reference method. Our paving team can help determine the right configuration.

Name
Would you like to book a meeting with a product expert?
=

“We leave nothing to chance, standing behind the quality and care of our products!”

-Jon, MOBA Tech for 20 years

Scroll to top

AUTOMATIC LASER CONTROL

MOBA LASER SYSTEMS

CB.D3.CAN RECEIVING SYSTEM

The CB.D3 provides the control layer for automatic laser-based blade positioning. It takes the receiver reference and interfaces with the machine’s hydraulic system so the blade can respond automatically, reducing the repeated manual corrections required to stay on the intended grade or level.

key capabilities

  • Compatible with proportional or on/off hydraulic valves
  • Three accuracy settings
  • Can be integrated with an elevating mast
  • Large LCD, die-cast aluminum housing and compatibility with MOBA laser receivers, slope and ultrasonic sensors
TALK TO AN EXPERT

AUTOMATIC LASER CONTROL

MOBA LASER SYSTEMS

DUO3.CAN RECEIVING SYSTEM

For grading attachments that use two laser receivers, the DUO3 provides the control between the receiver signals and the machine hydraulics. It is designed for applications where both sides of the blade need to respond to the laser reference, helping automate repeated blade-height corrections while the operator runs the machine.

key capabilities

  • Dual-control configuration for two-receiver applications
  • Compatible with proportional or on/off hydraulic valves
  • User adjustable accuracy settings
  • Supports elevating-mast integration and works with MOBA laser receivers, slope and ultrasonic sensors
TALK TO AN EXPERT

VISUAL LASER RECEIVER

MOBA LASER SYSTEMS

LASERGUIDE MINI R.45.TC PRO

The R.45.TC PRO builds on the straightforward visual guidance of the R.45.TC and adds connectivity for remote in-cab display and setup options. It gives operators a clear laser reference at the machine while supporting applications that benefit from CAN or Bluetooth integration.

key capabilities

  • Automatic tilt compensation
  • Bluetooth connectivity
  • Remote in-cab display capability
  • 7.5 in receiving length
TALK TO AN EXPERT

VISUAL LASER RECEIVER

MOBA LASER SYSTEMS

LASERGUIDE MINI R.45.TC

The R.45.TC brings the laser reference directly to the machine so the operator can see whether the attachment is high, low or on grade without repeatedly stopping to check elevation. Built-in tilt compensation automatically corrects for boom-angle changes, helping maintain a more dependable reference while the machine moves.

key capabilities

  • Automatic tilt compensation
  • Integrated magnetic clamp for quick mounting
  • Fully waterproof, all-metal construction
  • 7.5 in receiving length with operating range up to 1,970 ft
TALK TO AN EXPERT

GRADE & LEVEL LASERS

MOBA LASER SYSTEMS

ROTEC LS.RH

ROTEC LS.RH is a compact horizontal self-leveling laser for construction and leveling work where crews need a dependable reference without a complicated setup. Its rugged housing, electronic self-leveling and field-ready power options make it a practical everyday laser for demanding sites.

key capabilities

  • Automatic horizontal self-leveling
  • Red laser beam with up to 1,970 ft radius operating distance using a hand-held receiver
  • Levelling accuracy of ±1.5 mm at 98 ft
  • IP55 protection with rechargeable or alkaline battery options
TALK TO A LEVELING EXPERT

GRADE & LEVEL LASERS

MOBA LASER SYSTEMS

VISION 2N AUTOSLOPE / AUTOSLOPE ALIGN

The Vision 2N Autoslope is designed for grade work where maintaining the intended slope matters throughout the job. It electronically monitors the laser plane and automatically corrects for mechanical or thermal changes, reducing the need to stop and reset the reference.

key capabilities

  • Automatic dual-axis slope adjustment up to ±15%
  • Electronic monitoring and correction of the laser plane
  • Working range up to 4,920 ft radius
  • Autoslope Align variant adds automated alignment capability
TALK TO A GRADING EXPERT

GRADE & LEVEL LASERS

MOBA LASER SYSTEMS

VISION 2N / 2N ALIGN

The Vision 2N is built for applications that need both horizontal and vertical grade reference, including slope and alignment work. The 2N Align version adds automated alignment with the TE 90 ALIGN receiver, giving crews a more efficient setup when line and grade both matter.

key capabilities

  • Horizontal/vertical dual-grade operation
  • Monitored laser plane with manual slope, slope adjustment up to ±10%
  • Working range up to 2,300 ft radius
  • 2N Align supports automated alignment with TE 90 ALIGN
TALK TO A GRADING EXPERT

GRADE & LEVEL LASERS

MOBA LASER SYSTEMS

VISION 1N GRADE LASER

The Vision 1N provides a monitored laser reference for construction grading, site preparation and other work where crews need a dependable plane across the jobsite. It keeps the setup practical while helping protect against false readings when operating conditions change.

key capabilities

  • Monitored horizontal laser plane
  • Manual slope capability, slope adjustment up to ±10%
  • Working range up to 2,300 ft radius
  • Illuminated LCD display and laser-beam masking function
TALK TO A GRADING EXPERT
